Koso® HD-03L 4pc LED Gauge Kit – RED – for ’14-’23 Harley-Davidson® Touring
New
Koso® HD-03L 4pc LED Gauge Kit – RED – for ’14-’23 Harley-Davidson® Touring
$1,249.95

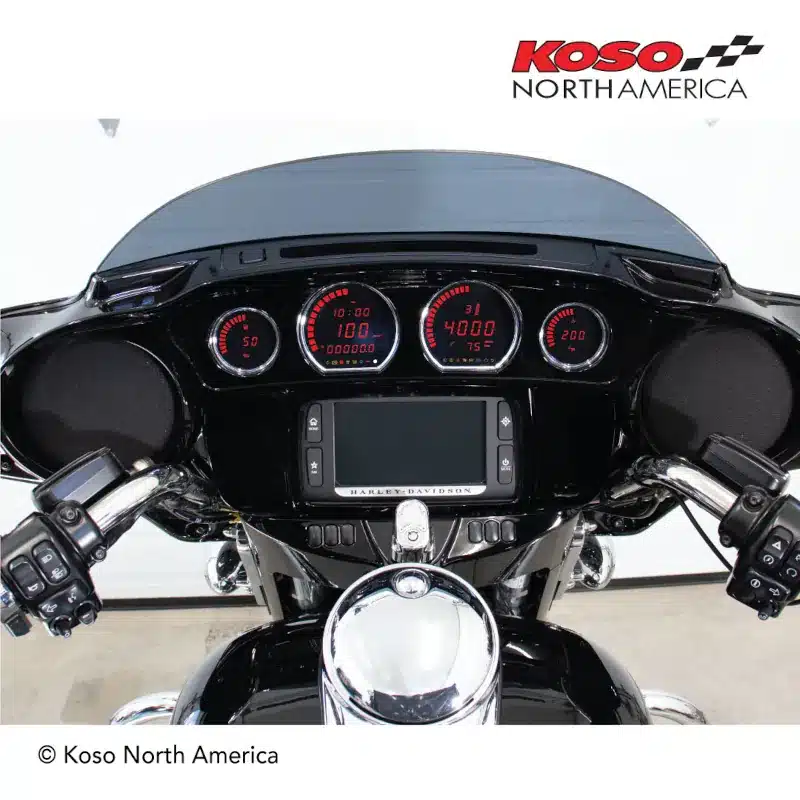

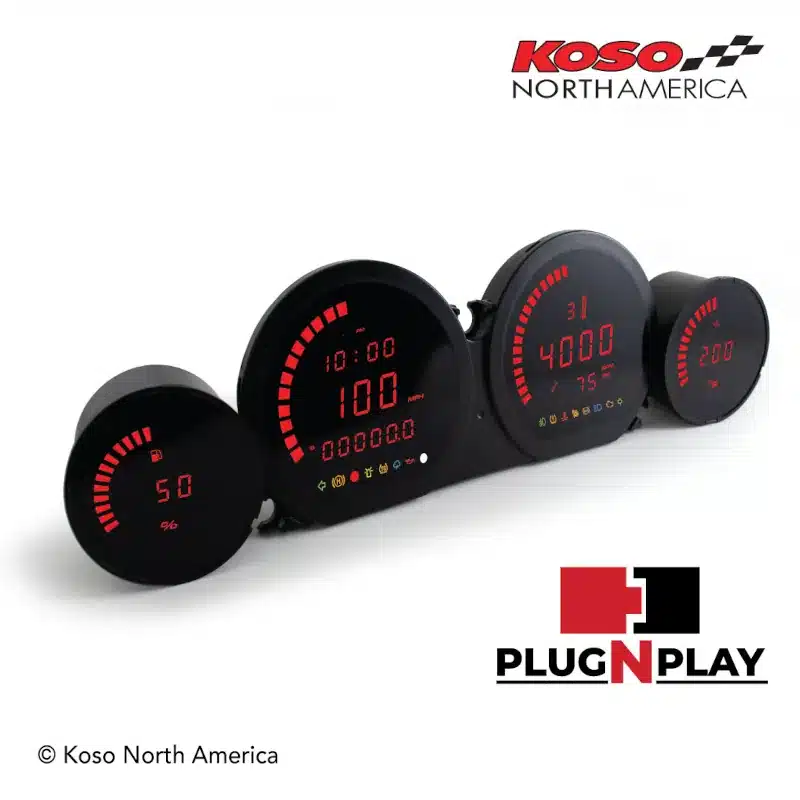

Following the positive reviews we received from Harley enthusiasts, we decided to release the updated bagger gauge kit for 2014 to 2023 touring models. This plug & play kit from Koso is now available to replace the stock gauges without any hassle! There is no need to drill holes or to rewire, they will fit directly in the OEM dash and connectors. This kit features a LED display (red or blue) for a custom look to fit your motorcycle. The HD‑03L kit includes a multifunction speedometer, tachometer, oil temperature gauge and a fuel level gauge. If you’re looking to enhance the look of your Harley, Koso has the plug & play solution for you!
To access settings on CVO models, you must turn ON the run/stop switch so that the bike will not turn off. Then you can make your adjustments to the settings on the gauge.
Temporarily Out of Stock
Email me when back in stock
Description
Fitment Chart
- Tachometer
R: 0 ~ 9,999 RPM | U: 10 RPM - RPM Shift‑light
R: 2,000 ~ 8,000 RPM
Warning lights on > value - Maximum RPM
R: 0 ~ 8,000 RPM | U: 100 RPM - Speedometer
R: 0 ~ 199 MPH (0 ~ 299 km/h)
U: 1 MPH or km/h (alternative) - Overspeed warning
R: 19 ~ 199 MPH (30 ~ 299 km/h)
Warning lights on ≥ value - Maximum speed record
R: 0 ~ 199 MPH (0 ~ 299 km/h) - Odometer
R: 0 ~ 999,999 miles (km) | U: 1 mile (km)
- Tripmeter A/B
R: 0 ~ 9,999.9 miles (km) | U: 0.1 mile (km) - Mileage maintenance
R: Off / 300 ~ 10,000 miles
(500 ~ 16,000 km) ~ -999 miles
U : 100 miles (km) - Engine temperature
R: -40 ~ 300 °F (-40 ~ 572 °C) - Fuel meter
R: 0 ~ 100 % - Fuel warning setting
- 1-HD Standard
Flashing LCD when > 211 Ω
Off LCD when < 187 Ω - 2-HD Customize
Flashing LCD when < 20%
Off LCD when > 30%
- 1-HD Standard
- Fuel tank volume
OFF / 1 ~ 9.9 US gallons - Average fuel consumption
OFF / MPG (US spec) / MPG (UK spec) L/ 100 km / km/L
- Remaining mileage
R: 0 ~ 6,249 miles ( 0 ~ 9,999 km)
LO RNG displayed when< 10 miles (16 km)
U: 1 mile (km) - Oil temperature meter
R: 32 ~ 248 °F (0 ~ 400 °C) | U: 1 °F or °C (alt) - Max. oil temperature record
R: 32 ~ 248 °F (0 ~ 400 °C) - Clock
R: 12 H or 24 H format - Volt meter

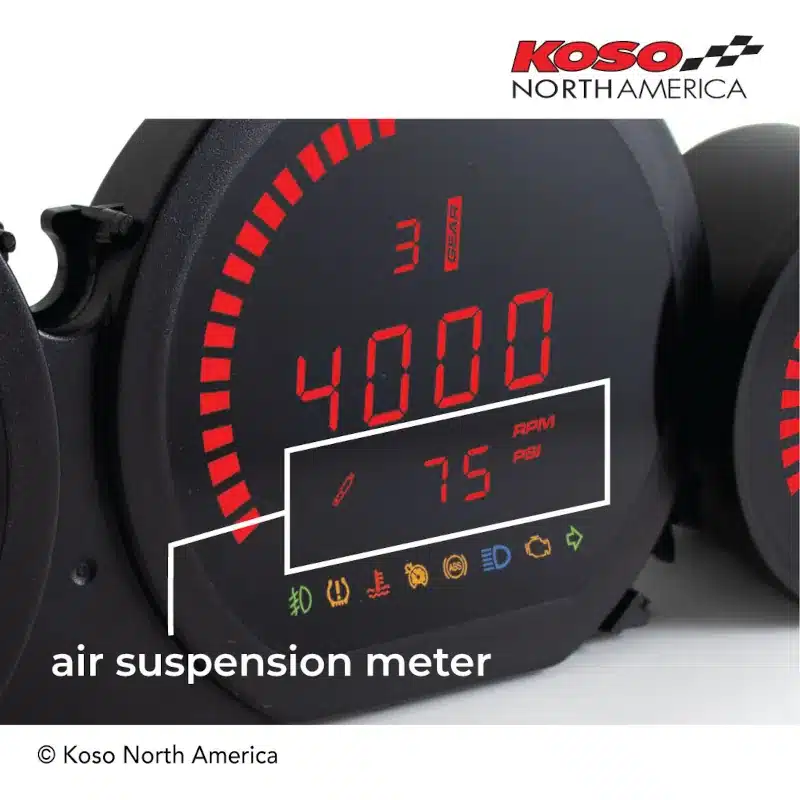

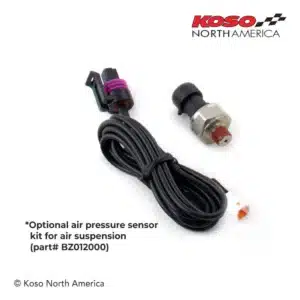

R: DC 8 ~ 18 V - Air suspension
R: 0psi ~ 200psi - Digits brightness
R: 1/5 (darkest) ~ 5/5 (brightest)
- Indicator lights
Turn signal / Water temp / Oil pressure / Photometric sensing / Warning light/ Check engine / High Beam / Fog light / Volt / Traction control / Cruise / ABS / Rain mode / Vehicle hold control / Fuel level / Low tire pressure / Security light - Gear indicator
OFF, N, P, R, 1, 2, 3, 4, 5, 6 - Effective temperature range
14 ~ 140 °F (‑10 ~ 60 °C) - Effective voltage
DC 12 V
